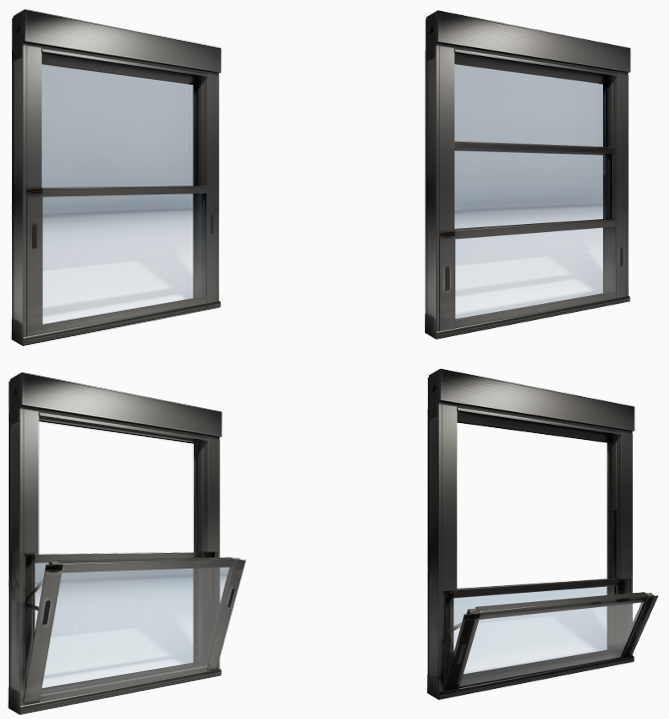

GIO SOLID
The system is equipped with 24 mm thick tempered double glazing, with optional Low-E, reflective, or laminated-glass alternatives. It features a motorized linear rail mechanism and ensures high sealing performance with silicon gaskets, brushes, and special sealing profiles.
| Product code : | GS |
| Category : | Guillotine glass systems |
| Labels : | |
| Stock : | In stock |
Glass Thickness Double-glazed; 24 mm (Example combinations: 4 mm + 16 mm + 4 mm / 6 mm+ 12 mm + 6 mm)
Profile & Accessories Consists of 13 aluminum profiles and an accessory kit
System Type Available in wipeable and fixed options
Glass Type Double-glazed (24 mm), tempered; optionally Low-E, reflective, or laminated glass can be applied
Surface Coating Electrostatic powder coating
Movement Mechanism Motorized; linear rail system
Sealing High wind and water resistance with silicone gasket, brush, and special sealingprofiles
Color Options RAL chart colors / Wood pattern coating / Custom color options
Durability High resistance to UV rays, moisture, and corrosion
System Height Maximum value: 3500 mm
System Width Maximum value: 3500 mm
System Weight 30 kg/m²
Application Areas Gardens, residential complexes, villas, industrial areas, public buildings
